A few practical benefits:
- Particularly economical solution for typical dehumidification applications in the commercial sector
- GS-tested quality
- High dehumidification performance
- Robust steel construction in carriage design
- Portable and easily stored anywhere thanks to its rotary compressor
- Hygrostat-controlled automatic operation
- Timer function
- Indication of the current room air humidity and temperature both in standby mode and dehumidification mode
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 1.120.001.116 | |
| Dehumidification performance | ||
| At 20 °C / 60 % RH [l/24h] | 20 | |
| At 30 °C / 80 % RH [l/24h] | 50 | |
| Max. [l/24h] | 52 | |
| Air flow rate | ||
| Level Max. | 300 | |

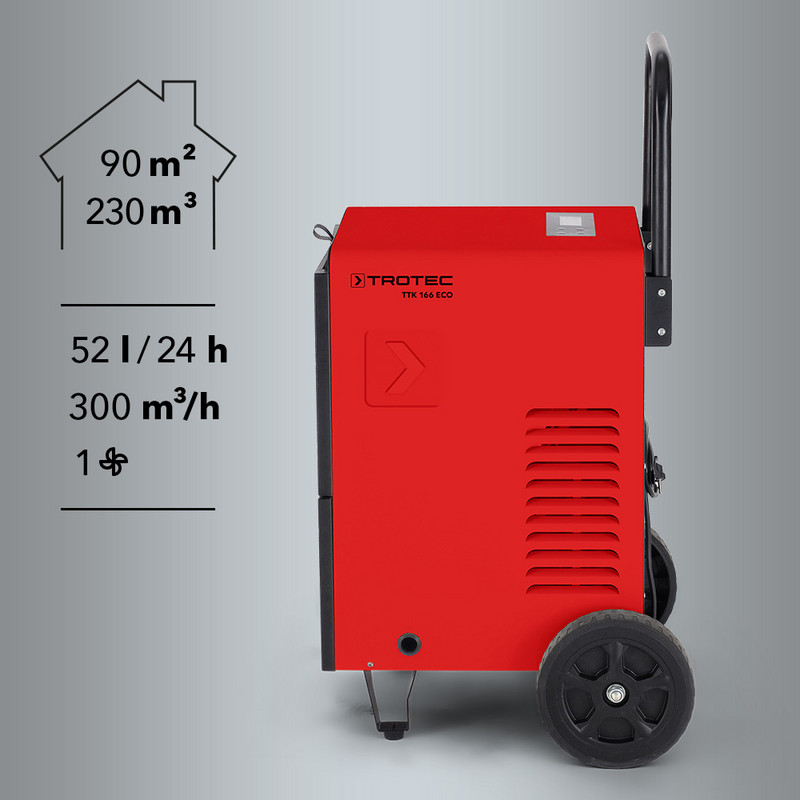

| Recommended room size dry keeping | ||
| m³ | 230 | |
| m² | 90 | |
| Ambient conditions | ||
| Min. temperature range [°C] | 5 | |
| Max. temperature range [°C] | 35 | |
| Min. humidity range [% RH] | 10 | |
| Max. humidity range [% RH] | 95 | |
| Electrical values | ||
| Mains connection | 220 – 240 V, 50 Hz | |
| Nominal current consumption [A] | 4 | |
| Power input [kW] | 0.95 | |
| Recommended fusing [A] | 10 | |
| Required current starting phase [A] | 16 | |
| Electric connection | ||
| Connection plug | CEE 7/7 | |
| Compressor | ||
| Rotary piston compressor | ||
| refrigerant | R-410A | |
| Amount of refrigerant [g] | 200 | |
| Minimum room size [m²] | 15 | |
| GWP factor | 3 | |
| CO2 equivalent | 0.0006 t | |
| Pressure suction side [MPa] | 1 | |
| Pressure outlet side [MPa] | 2.5 | |
| Max. permissible pressure [Mpa] | 2.5 | |

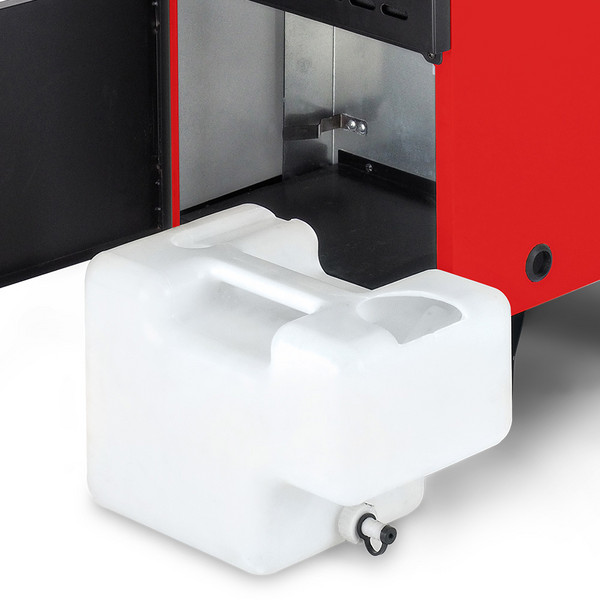

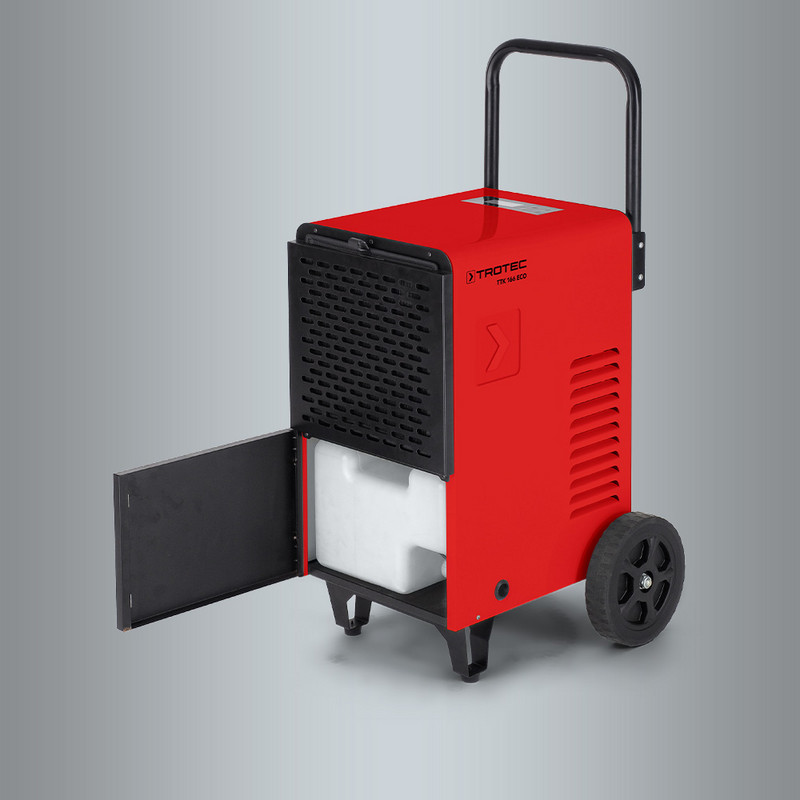

| Water tank | ||
| Contents in [l] | 7 | |
| Sound values | ||
| Level 1 – Distance 1 m [dB(A)] | 56 | |
| Functions and features | ||
| Cable holder | ||
| Current room temperature indication | ||
| Memory function | ||
| LED display | ||
| Display of the relative humidity level | ||
| Automatic fault diagnosis system | ||
| Fan rundown function | ||

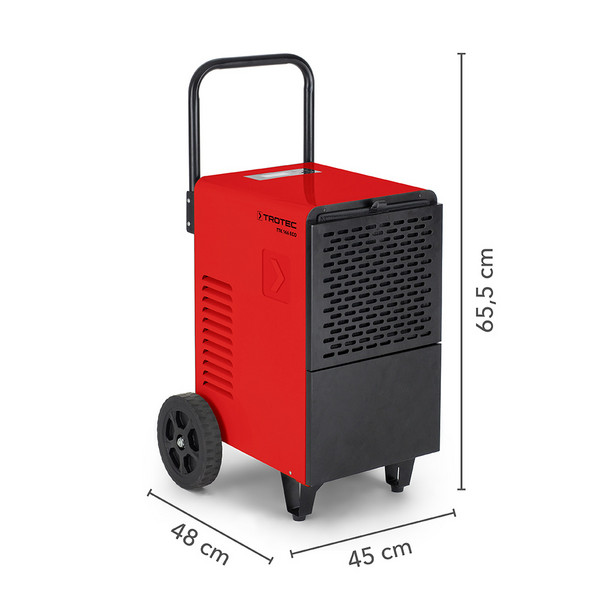

| Dimensions | ||
| Length (packaging excluded) [mm] | 480 | |
| Width (packaging excluded) [mm] | 450 | |
| Height (packaging excluded) [mm] | 655 | |
| Weight | ||
| (packaging excluded) [kg] | 30 | |
| Equipment, features and functions | ||
|---|---|---|
| Automatic defrost system | ||
| Air circulation / electronic | ||
| Automatic dehumidification | ||
| Non-stop dehumidification | ||
| Hygrostat-controlled | ||
| Electronic hygrostat | ||
| Fan | ||
| axial | ||
| stages | 1 | |
| Condensate tank monitoring | ||
| Container available | ||
| Overflow protection with automatic switch-off | ||
| Filling level warning light to indicate a full water tank | ||

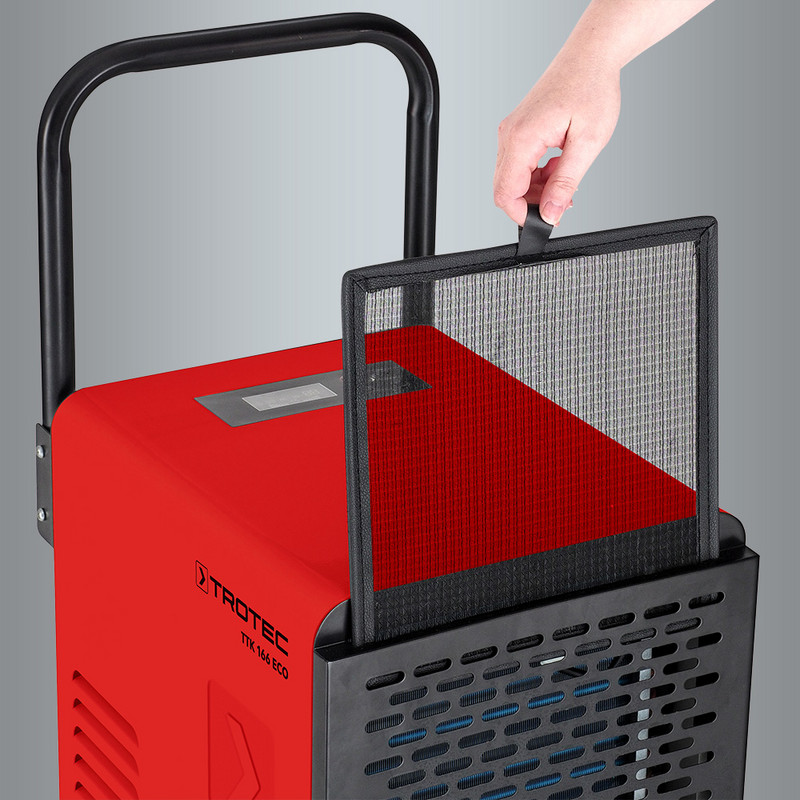

| Room air filter | ||
| Cleanable | ||
| Readily accessible | ||
| Timer function | ||
| Switch-on time preselectable | ||
| Switch-off time can be preselected | ||
| Mobility | ||
| Non-marking full-rubber wheels | ||
| Carry/transport handle(s) | ||
| Cable winder | ||
| Carriage design | ||
| Feet | ||
| Condensate drain | ||
| Hose connection possible | ||
| Recommended hose size [mm] | 13 mm | |

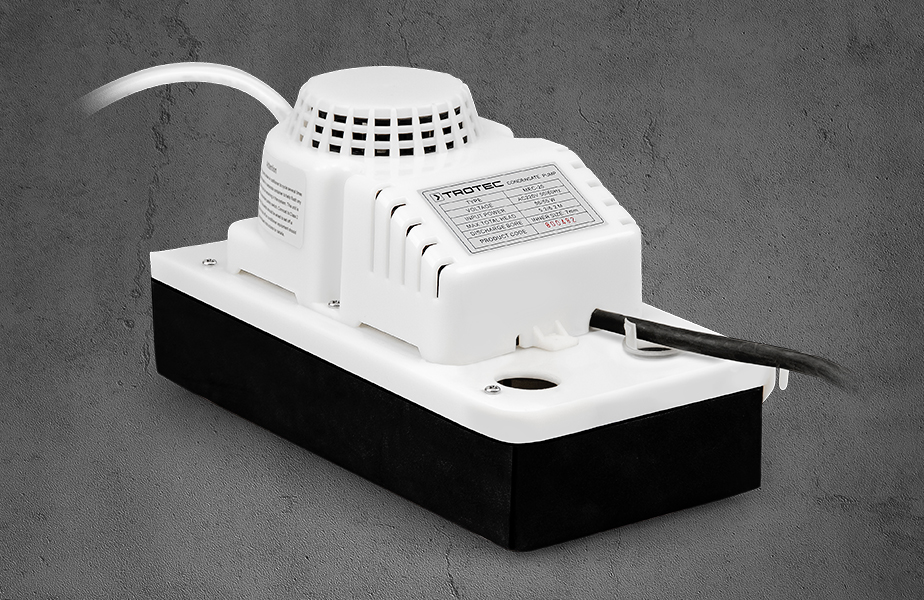

| Condensate pump | ||

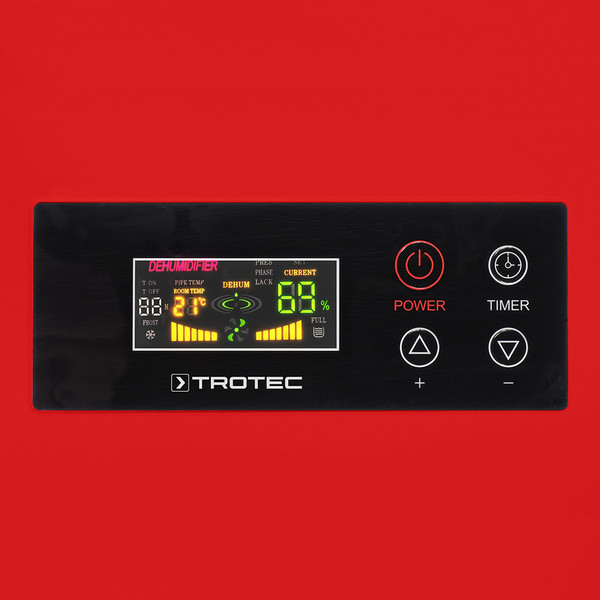

| Control panel | ||
| Digital display | ||
| Touchscreen control panel | ||
| Housing design | ||
| Steel coated | ||
