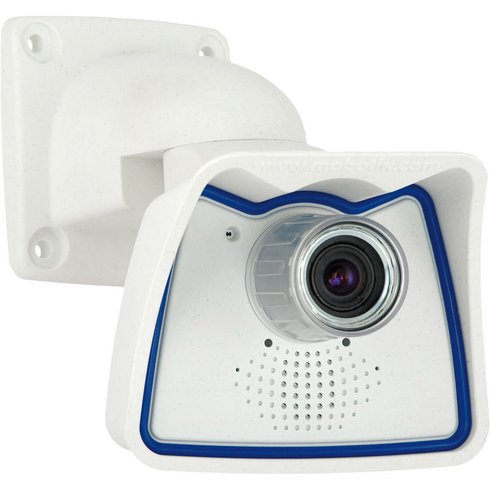

The MX-M25-D036 is a compact, cost-efficient and extremely powerful allround camera with 6-megapixel sensor technology for excellent image quality. It is fully equipped with IP66-certified housing and long-term internal storage on a MicroSD card.
The outdoor camera can fast and simply be installed on poles by using the delivered mounting set. Its sturdy, low-maintenance and weatherproof design allows using the outdoor camera in climates from -30 to +50°C (IP66).
Visual performance | |
|---|---|
| Lenses | B036 super wide-angle with 103° angle of view (horizontally) |
| Max. image resolution | Color and B/W: 6-megapixel (3072 x 2048) |
| Sensitivity | Color: 0.1 lux @ 1/60 s, 0.005 lux @ 1 s B/W: 0.02 lux @ 1/60 s, 0.001 lux @ 1/1 s |
| Max. frame rate M-JPEG (live/recording) | HD: 15 fps, MEGA: 12 fps, QXGA: 6 B/s, 5MP: 4 B/s, 6MP: 4 B/s |
Power | |
| Power supply | Power over Ethernet (PoE) in accordance with IEEE 802.3af: PoE class variable (2/3) depending on operating mode |
| Power consumption (typ.) | < 4.5 W |
Camera operated with Meteo-40 | |
| Accessories | Power-over-Ethernet-Injector (IN: 9…36 VDC, OUT: 48V), overvoltage protection |
| Stand-alone operation with battery | |
| Accessories | Power-over-Ethernet-Injector (IN: 9…36 VDC, OUT: 48V), overvoltage protection, battery 12V/24V, fuse |
General | |
| Internal DVR | MicroSD (4 GB card pre-installed) |
| Interfaces | 10/100 Ethernet, IPv4/IPv6, MiniUSB, MxBus |
| Security features | User/group management, HTTPS/SSL, IP address filter, IEEE 802.1x, intrusion detection, digital image signature |
| Operating temperature | -30 … +50°C (integrated temperature sensor) |
| Protection | IP66 (DIN EN 60529) |
| Certification | EMC (EN 55022, CISPR 22, EN 55024, EN 61000-6-1/2, FCC part15B, CFR 47, AS/NZS 3548) |
| Dimensions / Weight | 140 x 230 x 190 mm (width x depth x height) / approx. 750 g |
| Manufacturer | Mobotix |
