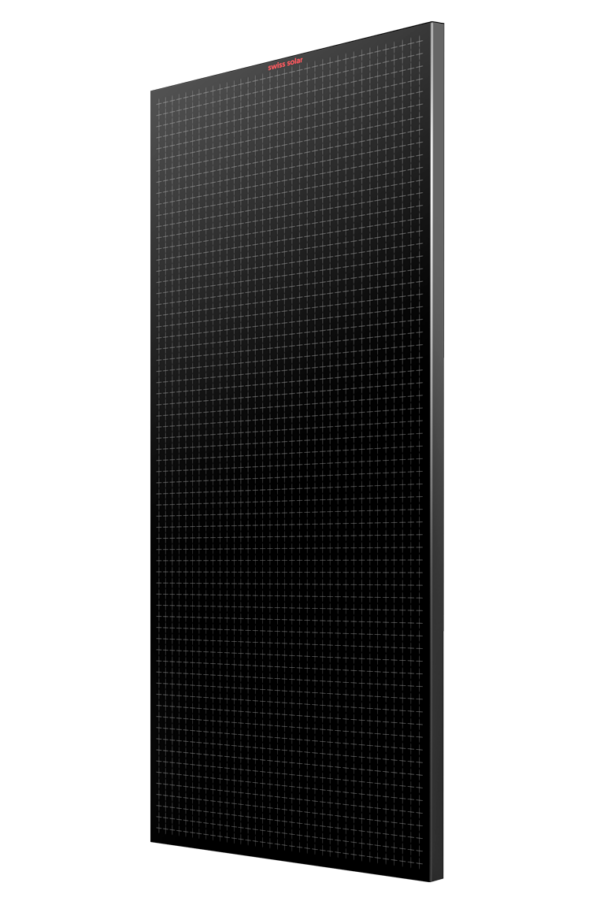

Solar panel IBEX 132MWT-graphene 400-410

Engineered in Switzerland

GRAPHENE COATING TECHNOLOGY

Positive power tolerance (0+5W) guaranteed
Full Black: All black design for more elegant applications
Innovative Layout: Innovative back contact module layout with asymmetric design for higher efficiency power
High performance under low light. Works at cloudy, rainy days
High Reliability: conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions
Lead Free: Eco-friendly PV design achieves lead-free MWT module without soldering materials
20.9% module efficiency
Cell size (166×83 mm)

IDEAL FOR

Private rooftop installation
Commercial and Industrial
Ground-mounted solar power plants

Category: Solar Panels Sun Energy

Description

Description

TECHNICAL DATA

Efficiency:Up to 20. 90%

Power classes: 400, 405, 410 Wp

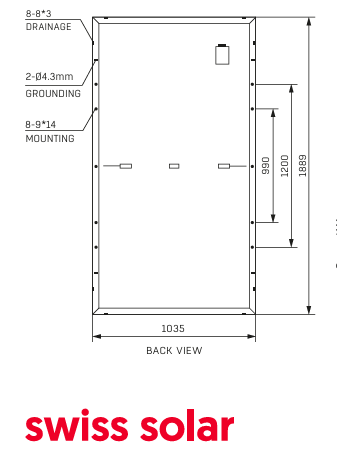

Size: 1889 x 1035 x 30 mm

Weight: Up to 20.5 kg

Warranty

At least 97% of nominal power during first year.
Thereafter max. 0.5086% degradation per year.
At least 86.83% of nominal power up to 20 years.
At least 81.75% of nominal power up to 30 years.

YOU CAN READ MORE INFORMATION IN OUR DATA SHEET:

DATA SHEET
